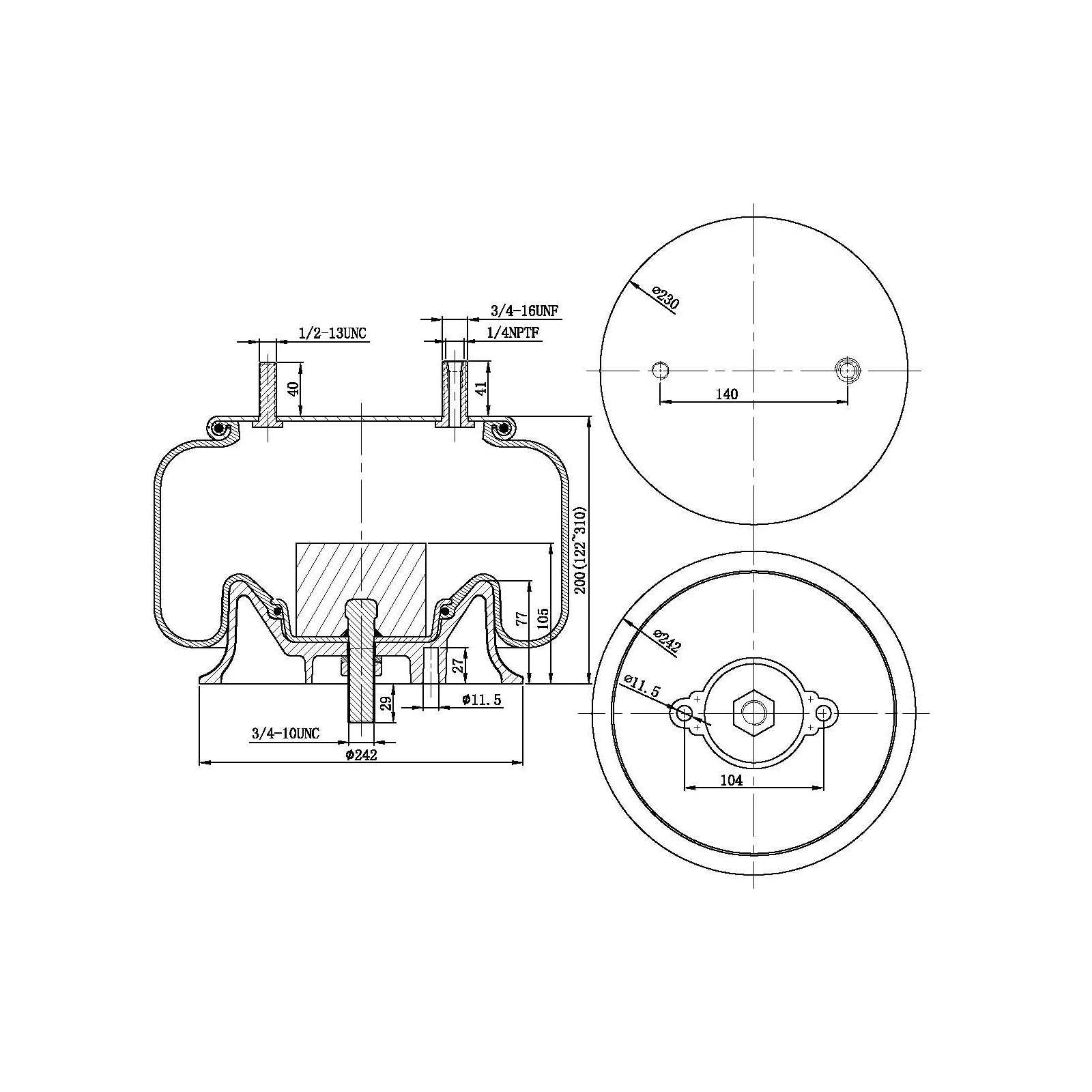

AIR SPRING 9039, 1R12-095

Manufacturer: FORTPRO
SKU: F245599
Price:
i h h
Products specifications
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameAir Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Suspension Bag, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring
OEM Part NumberW01-358-9039
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
VMRS Code016-008-000
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPT
Air Inlet Outside Thread3/4 16 UNF
Body Diameter10.12 in.
Bottom Plate AlignmentParallel
Bottom Plate Diameter9.25 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom1
Mounting Stud Configuration - Top2
Piston Height3.00 in.
Piston Material TypeSteel
Top Plate Diameter9.00 in.
Top Plate Stud1/2 13 UNC
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length4.40 in.
Extended Length13.50 in.
Packaging & Logistics Attributes
Net Weight15.25 lb.
Special Attributes
Cross References101324014, 1013589039C, 101827, 1R12095, 1R12097, 1R12097SA, 1R12122, 1T15K0, 1T15M0, 3048200007, 3090054234, 3090557011, 3090557023, 3130492, 3529039, 554766C1, 566CT64260, 57009039, 64260, 702, 90044199, 90044708, 90054234, 9039, 90557011, 90557023, 90557085, 91010P311, 942401, 942403, AB1DK23F9039, AB1R12095, AB1R12097, AR15171FG, AS0012, AS9039, B11650, B2064, CS112095, CS112097, GY1R12095, H942401, M3511, MNW90557011S, MNW90557023S, S11650, S2061C, S2063, S2064, S5356C, W013589039, W01-358-9039
Intended Application
  • Compatible with Hendrickson (S-Series), Holland (Neway), Hutchens, R & S Truck & Body, Ridewell, FabTek, Sauer, and Watson & Chalin Trailer Air Suspension Systems.
*
*
*
