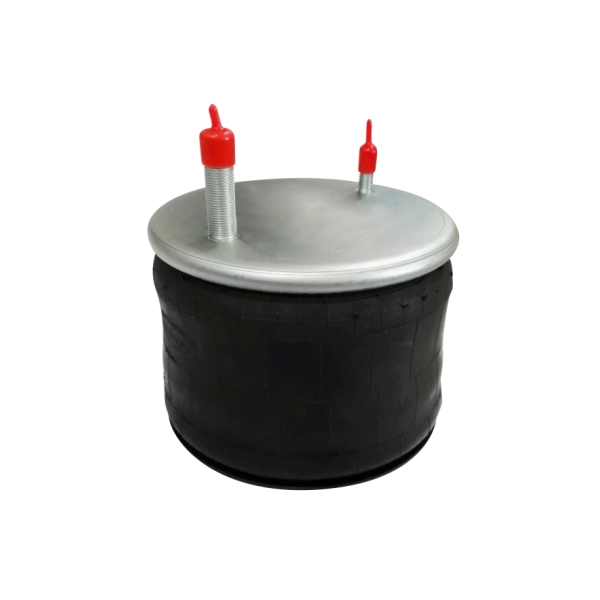

F9422 AIR SPRING, 1R11-028

Manufacturer: FORTPRO
SKU: F245588
Price:
i h h
Products specifications
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameRolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Air Bag Suspension, Suspension Air Bag
OEM Part NumberW01-358-9422
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks
VMRS Code016-008-000
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPT
Air Inlet Outside Thread3/4 16 UNF
Body Diameter9.12 in.
Bottom Plate AlignmentParallel
Bottom Plate Diameter9.50 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom2
Mounting Stud Configuration - Top2
Piston Height2.80 in.
Piston Material TypeComposite
Top Plate Diameter9.00 in.
Top Plate Stud1/2-13 UNC
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length3.80 in.
Extended Length13.30 in.
Packaging & Logistics Attributes
Net Weight13.00 lb.
Special Attributes
Cross References1R11028, 1T15KW15, 1T15L2, 1T15T3, 3130496, 3529422, 3529422AG, 554762C1, 566CT64255, 64255, 9205, 9422, 9614, 9615, 9912P314, AB1DK20D9422, AS0017, CS111028, FAS-0689, FAS0689, FS9422, GY1R11028, K30314, K30315, K3036, M3525, S13032, W013589422, W01-358-9422
Intended Application
  • Compatible with Kenworth Airglide 100 Rear Air Suspension – older version without bracket.
*
*
*
