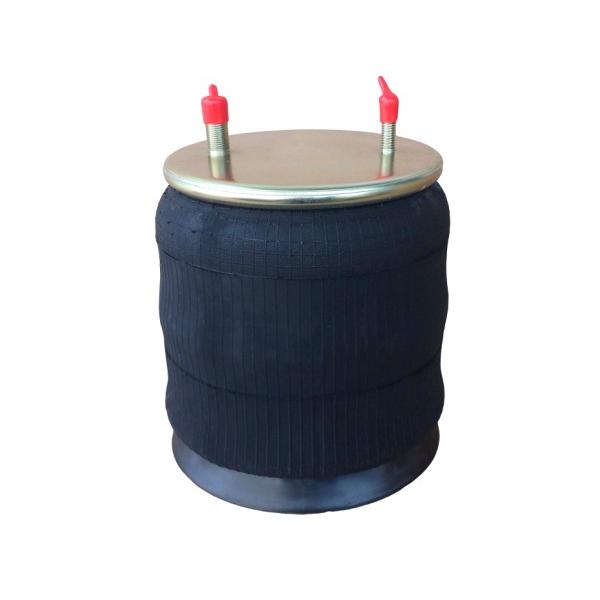

F9082 AIR SPRING

Manufacturer: FORTPRO
SKU: F245583
Price:
i h h
Products specifications
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameAir Ride Spring, Pneumatic Spring, Rolling Lobe Air Spring, Air Suspension Bag, Reversible Sleeve Air Spring, Suspension Air Bag, Air Bag Suspension
OEM Part NumberW01-358-9082
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks
VMRS Code016-008-000
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPT
Air Inlet Outside Thread3/4 16 UNF
Body Diameter10.12 in.
Bottom Plate Alignment45 deg.
Bottom Plate Diameter10.25 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom4
Mounting Stud Configuration - Top2
Piston Height5.68 in.
Piston Material TypeComposite
Top Plate Diameter9.00 in.
Top Plate Stud1/2-13 UNC
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length7.90 in.
Extended Length20.75 in.
Packaging & Logistics Attributes
Net Weight19.80 lb.
Special Attributes
Cross References0646, 1R11917, 1R12092, 1R12093, 1R12134, 1R12509, 1R12677, 1R13097, 1T15K1, 1T15K1M6, 1T15M6, 3048200003, 3090044200, 3090557006, 3090557027, 3090557031, 3090557075, 3130491, 3529082, 365147, 517096C9, 517096C91, 517559C9, 566CT64269, 57QL310, 64269, 646, 90557027, 9082, 9084, 91016P310, 963001, 963003, AB1DK23K9082, AS0011, AS9082, B2066, CS112092, FS9082, GY1R12092, H963001, M3513, S4041, W013589082
Intended Application
  • Compatible with Hendrickson Canada, Kelderman, Hutchens, Holland (Neway), Reyco, R & S Truck & Body, Ridewell Air Suspension Systems — for Rear Axle and Trailer Air Suspension Applications used on Freightliner, Peterbilt, Kenworth, Mack, and International Trucks.
*
*
*
