| Product Line | Brakes |
| Category Name | Slack Adjusters |

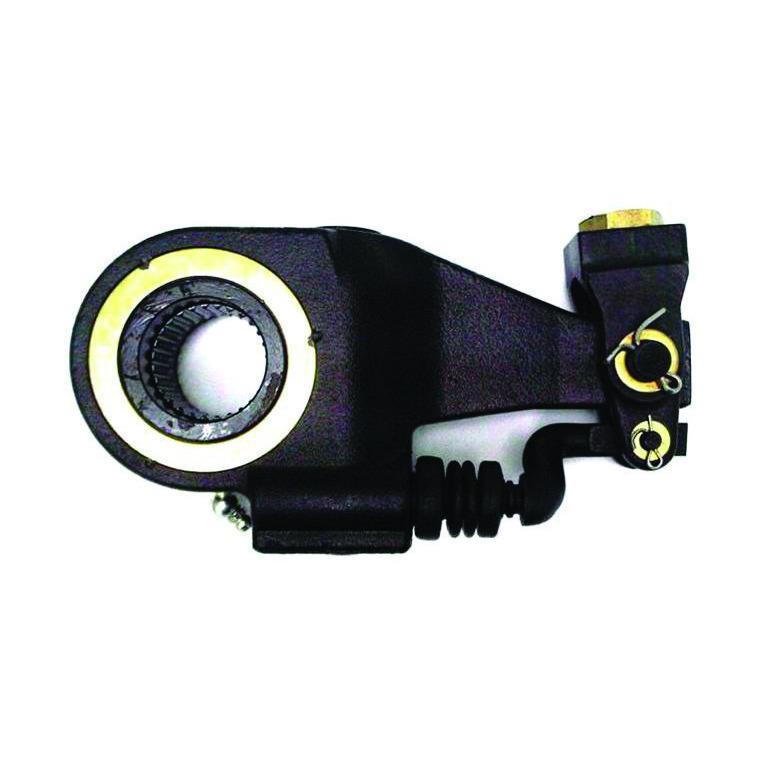

| Part Type | Automatic Slack Adjusters |
| Model | Bendix Style / ASA-5 |
| OEM Part Number | 65174 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Brake Chamber Sizes | T-20 |
| Clevis Type | Straight |
| Clevis/Yoke Type | Easy-On (EO) |
| Material | Alloy Steel |
| Arm Length Position 1 | 5-1/2 in. |
| Arm Offset | No Offset |
| Body Inclination Angle | 0 deg. |
| Clevis Thread Diameter | 5/8-18 UNF-2B |
| Slack Spline Count | 28 |
| Slack Spline Diameter | 1-1/2 in. |
| Lubrication Fitting Type | 45 deg. Elbow |
| Maximum Operating Temperature | 158 deg. F (70 deg. C) |
| Maximum Torque | 20.000 In./Lbs. |
| Minimum Operating Temperature | (-40 deg. F) (-40 deg. C) |
| Operation Type | Tension Adjuster - Torque |
| Cross References | 05-463, 05463, 065174, 1372810, 40010070, 65174, E-11400, E11400, K034076, MK42100S, R801072 |
