| Product Line | Driveline & Axles |
| Category Name | Wheel Fasteners |

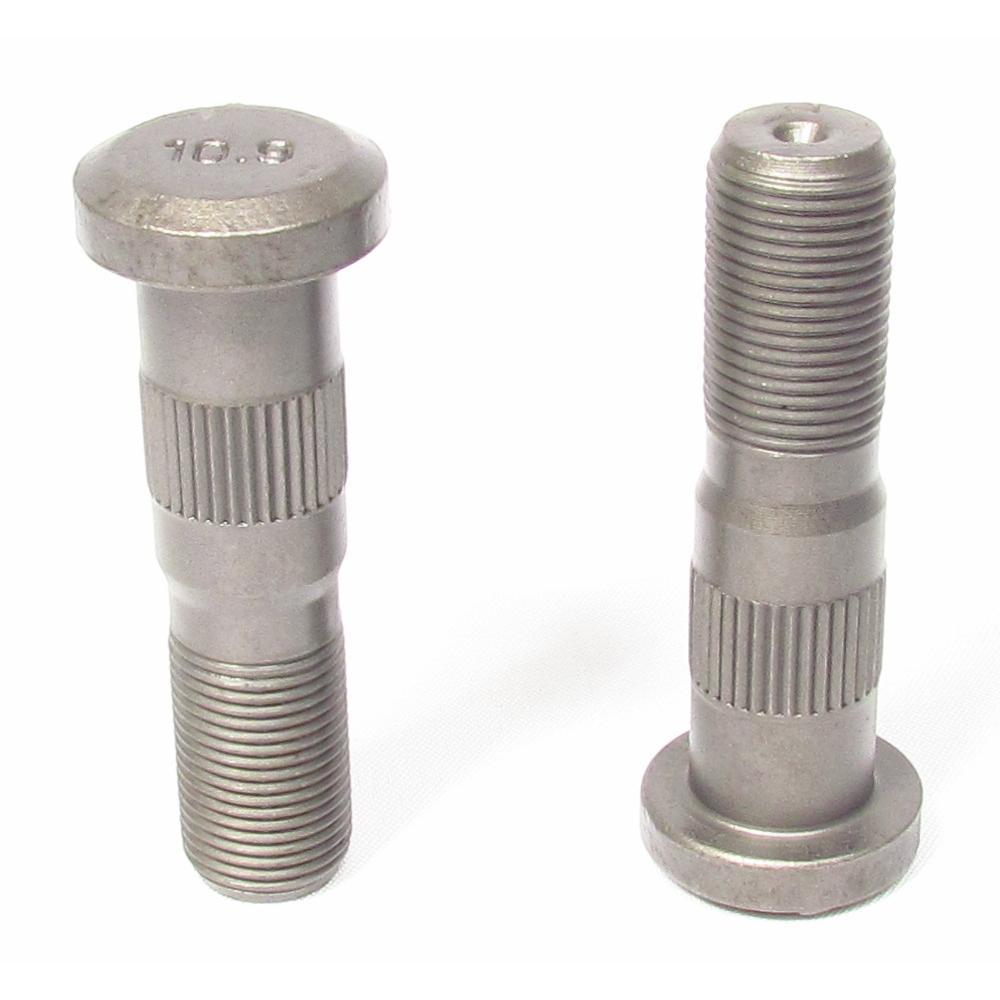

| Part Type | Wheel Stud |
| Alternate Part Name | Left Hand Wheel Stud, Serrated Drive Wheel Studs, Metric Serrated Wheel Studs |
| OEM Part Number | E8947L |
| Application Type | Semi-Trucks, Heavy-Duty Trucks |
| Stud Type | Headed |
| Material | Carbon Alloy Steel |
| Body Diameter (G) | 0.785 in. |
| Body Length (E) | 1.400 in. |
| Head Diameter (F) | 1.280 in. |
| Head Style | Round |
| Head Thickness | 0.310 in. |
| Length from Under Head (B) | 3 in. |
| Serration | Serrated |
| Serration Diameter | 0.820 in. |
| Serration Length (D) | 0.380 in. |
| Thread (A) | 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in. |
| Thread Direction | LH (Left Hand) |
| Thread Length (C) | 1.160 in. |
| Thread Size | 3/4-16 UNF-2A |
| Threads | 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.47 lb. |
| Cross References | 100146, 131122L, 159183, 1681026L, 2016045L, 36159183, 947, E-8947-L, E8947L, M3609, R008947L |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
