| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

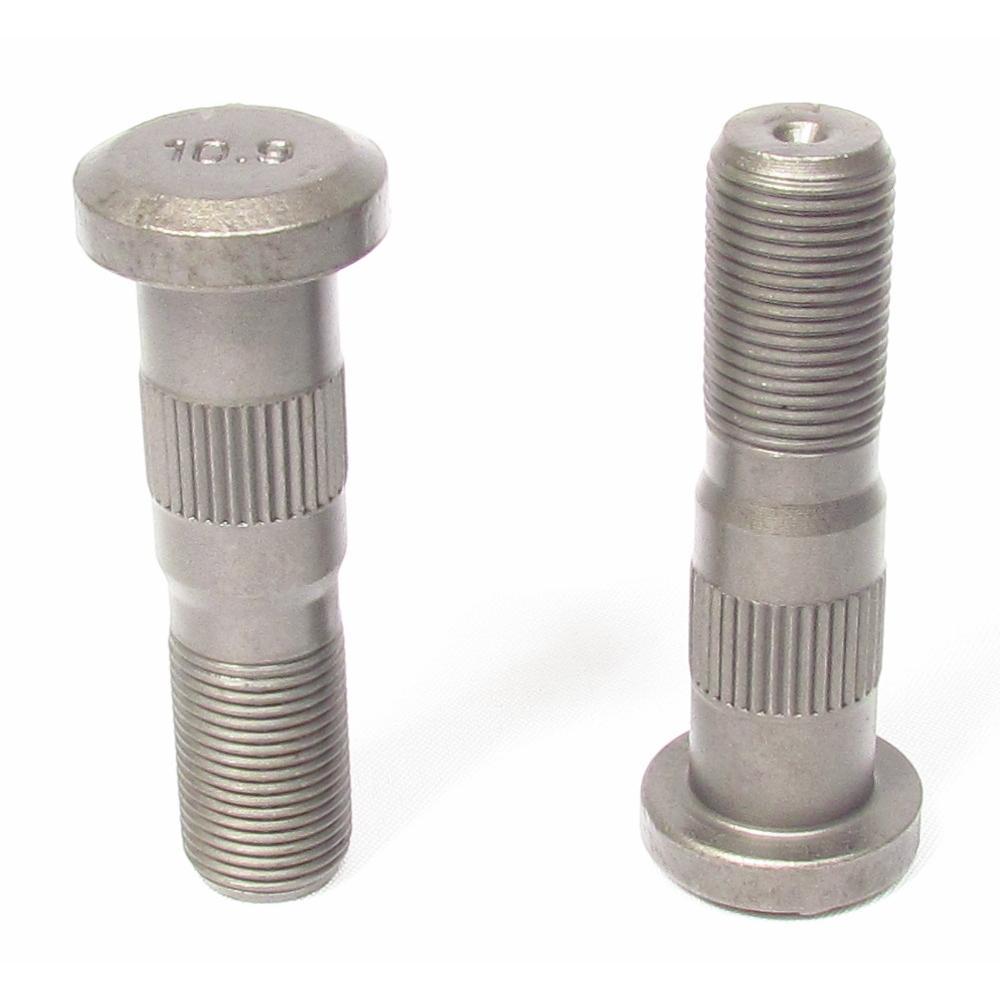

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Serrated Drive Wheel Studs, Right Hand Wheel Stud, Serrated Drive Wheel Studs, Right Hand Wheel Stud |
| OEM Part Number | E8947R, E8947R |
| Application Type | Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 0.785 in., 0.785 in. |
| Body Length (E) | 1.400 in., 1.400 in. |
| Head Diameter (F) | 1.280 in., 1.280 in. |
| Head Style | Round, Round |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 3 in., 3 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 0.820 in., 0.820 in. |
| Serration Length (D) | 0.380 in., 0.380 in. |
| Thread (A) | 3/4 in.-16, 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in., 0.750 in. |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 1.160 in., 1.160 in. |
| Thread Size | 3/4-16 UNF-2A, 3/4-16 UNF-2A |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.47 lb., 0.47 lb. |
| Cross References | 100145, 131122R, 13112R, 159184, 1681026R, 2016045R, 36159184, 948, E-8947-R, E8947R, M3608, R008947R, W575 |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
