| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

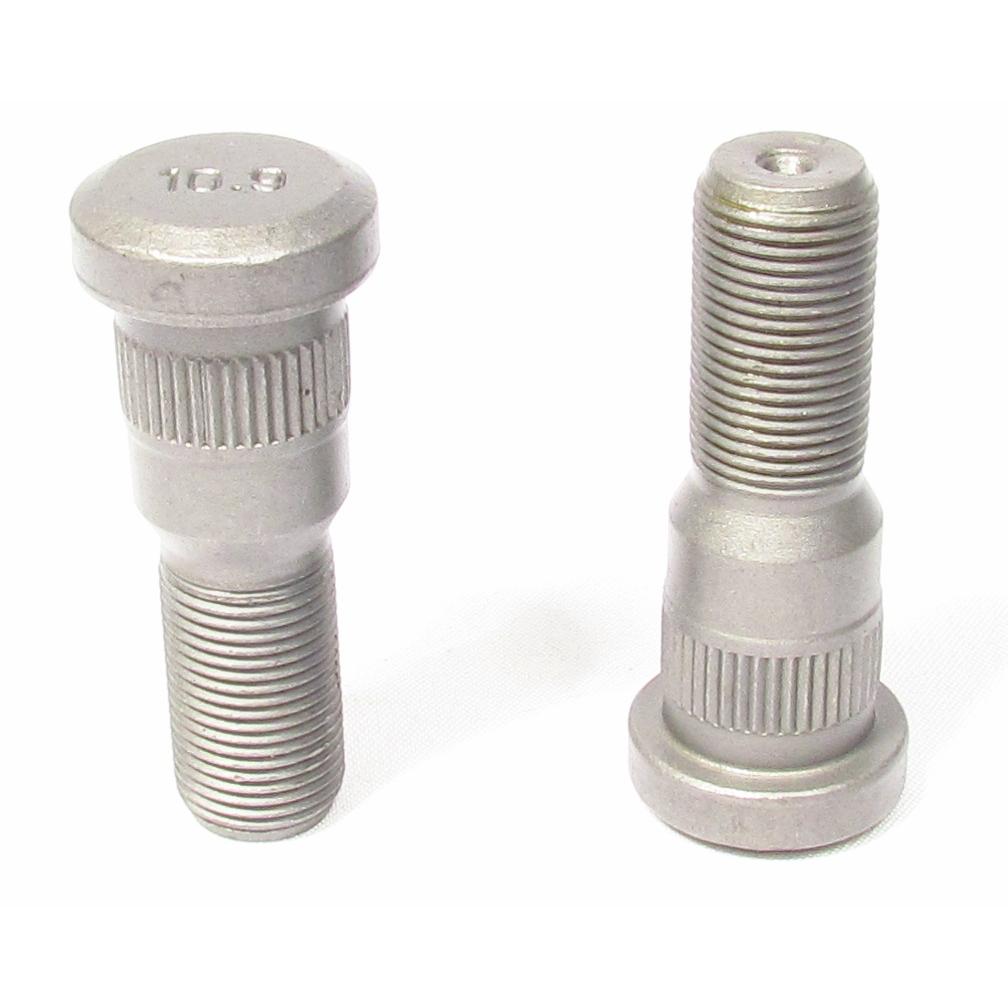

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Left Hand Wheel Stud, Serrated Drive Wheel Studs, Left Hand Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E8949L, E8949L |
| Application Type | Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 0.900 in., 0.900 in. |
| Body Length (E) | 0.980 in., 0.980 in. |
| Head Diameter (F) | 1.250 in., 1.250 in. |
| Head Style | Round, Round |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 2-5/8 in., 2-5/8 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 0.950 in., 0.950 in. |
| Serration Length (D) | 0.390 in., 0.390 in. |
| Thread (A) | 3/4 in.-16, 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in., 0.750 in. |
| Thread Direction | LH (Left Hand), LH (Left Hand) |
| Thread Length (C) | 1.300 in., 1.300 in. |
| Thread Size | 3/4-16 UNF-2A, 3/4-16 UNF-2A |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.47 lb., 0.47 lb. |
| Cross References | 106202, 131585L, 1681039L, 2016097L, 3008402, 450, E-8949-L, E8949L, M3219, R008949L, W505, 201.6097L |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
