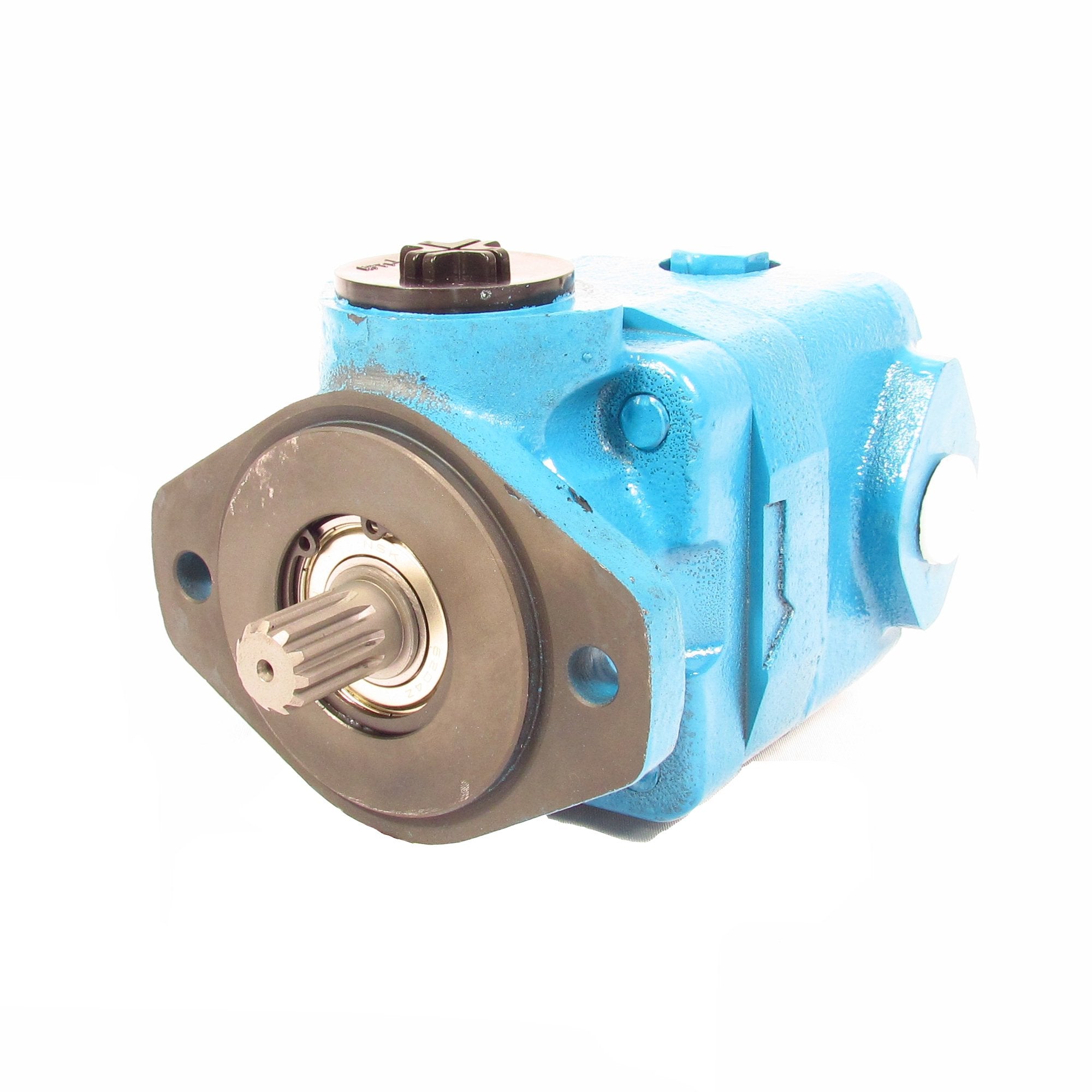

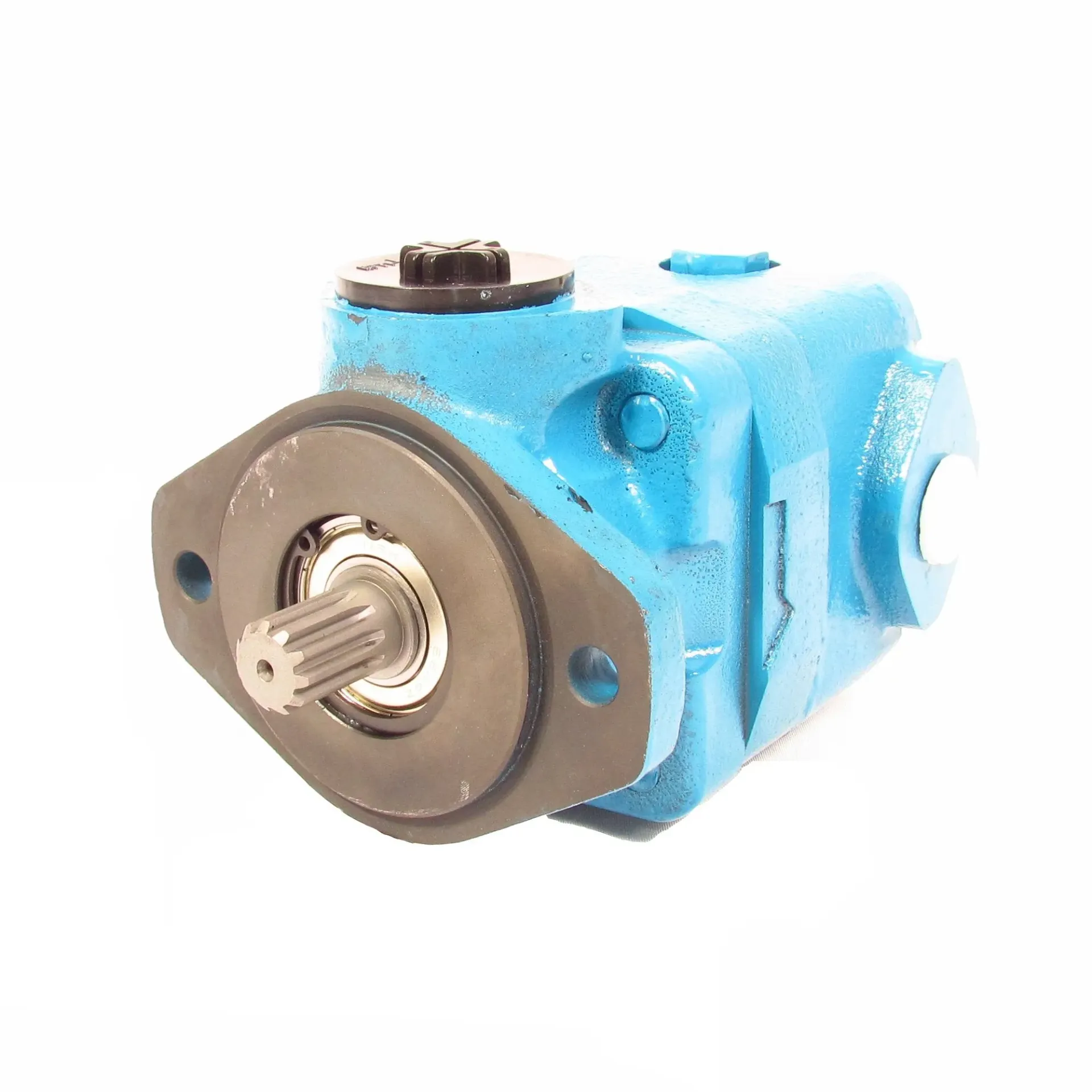

POWER STEERING PUMP V20 (V20F1P11P38D6H11) 38QC367P26

Name: POWER STEERING PUMP V20 (V20F1P11P38D6H11) 38QC367P26
Brand: FORTPRO
SKU: F255702
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F255702

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Steering Components
Category Name	Power Steering Pump
Part Type	Steering Pump
Alternate Part Name	Hydraulic Power Steering Pump
Model	V20 F
OEM Part Number	V20F 1P8P 38D5H 22
Application/Fitment Attributes
Inlet Port Thread Size	1-1/4 NPT
Mounting Type	2 Bolt Flange SAE-A SIZE
Outlet Port Thread Size	1/2 - NPT, 3/4 -16 NPT
Dimensional/Physical Attributes
Material	Cast Iron
Technical/Performance Attributes
Max Operating Speed	2800 rpm
Max Relief Pressure	2000 psi
Nominal Flow Rate	8 US gpm @ 1200 rpm
Operating Temperature Range	0 deg. C – +80 deg. C
Pump Displacement	26.50 cm³/rev
Shaft Rotation Direction	Right-Hand
Shaft Type	11-Tooth Spline
Volumetric Efficiency	? 90 – 92 %
Packaging & Logistics Attributes
Package Length	7.00 in.
Package Width	8.00 in.
Package Height	8.00 in.
Net Weight	21.84 lb.
Special Attributes
Cross References	38QC367P26, EM38820, V20F 1P8P 38D5H 22, V20F1P8P38D5H22
