| Product Line | Steering Components |

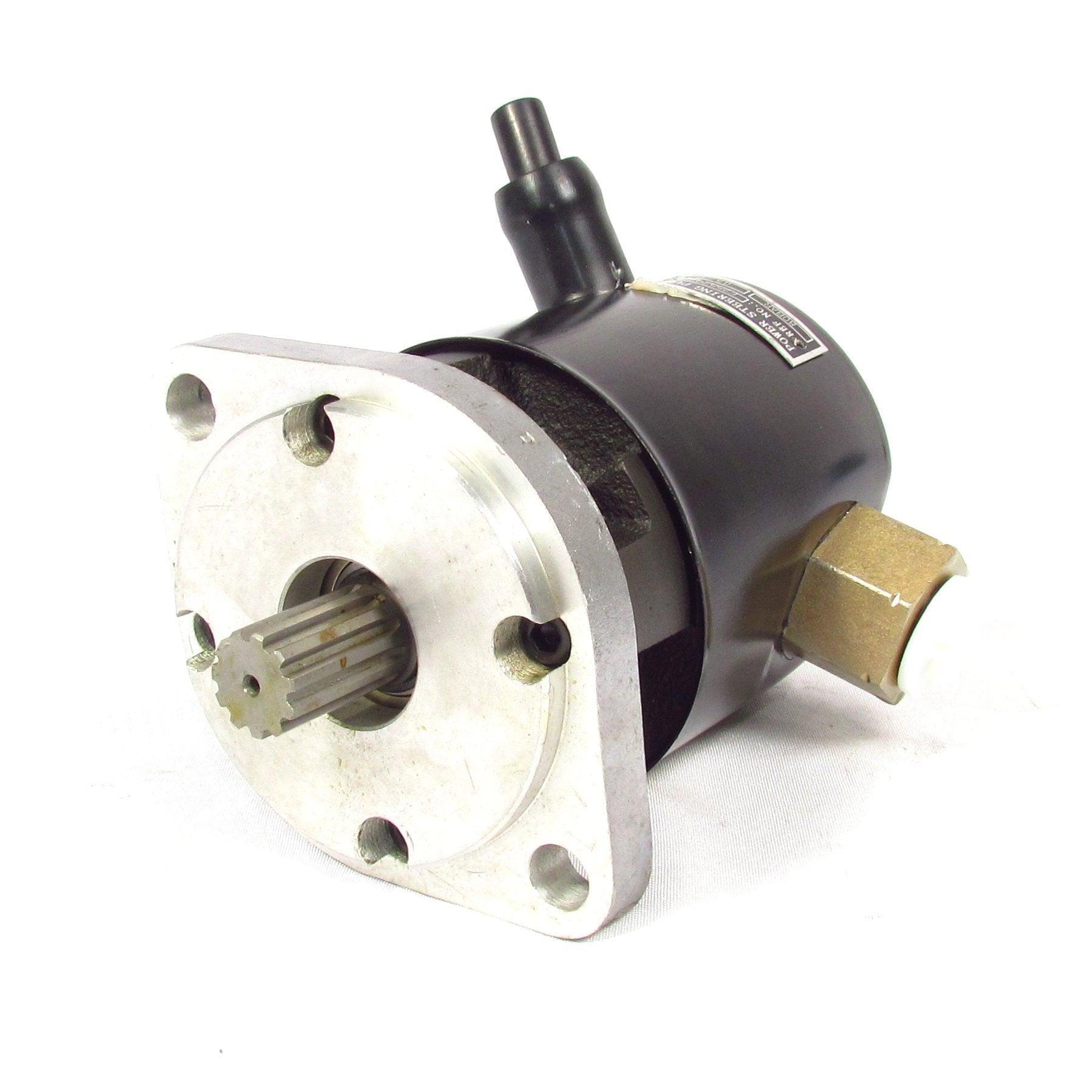

| Category Name | Power Steering Pump |
| Part Type | Steering Pump |
| Alternate Part Name | Hydraulic Power Steering Pump |
| OEM Part Number | 0810L/276-1 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Inlet Port Thread Size | 1 1/16-12 UN-2B |
| Mounting Type | 2 Bolt Flange SAE-A SIZE |
| Outlet Port Thread Size | M22 x 1.5 |
| Material | Cast Iron |
| Max Operating Speed | 3200 rpm |
| Max Relief Pressure | 80 bar |
| Nominal Flow Rate | 10.0 L/min |
| Pump Displacement | 10.5 cm³/rev |
| Shaft Rotation Direction | Left-Hand |
| Net Weight | 8.30 lb. |
| Cross References | 0810L/276-1, 0810L/2761, KODIAK316 |
| Intended Application | Compatible with Caterpillar 3116 Engines |
