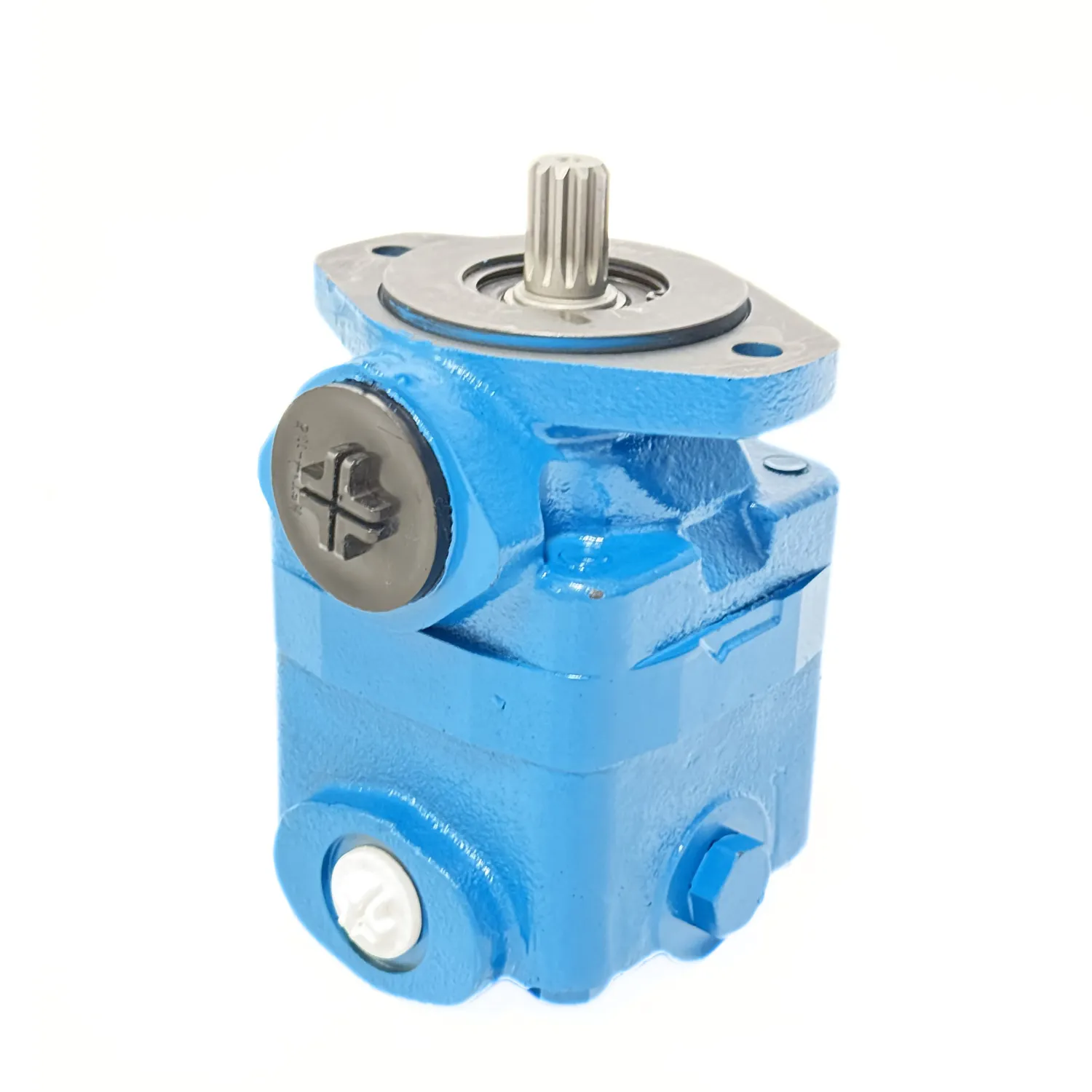

POWER STEERING PUMP V20F1P9P38C6G20
Products specifications
| Product Line | Steering Components |
| Category Name | Power Steering Pump |
| Part Type | Steering Pump |
| Alternate Part Name | Hydraulic Power Steering Pump |
| Model | V20 F |
| OEM Part Number | V20F 1P9P 38C6G 20 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Inlet Port Thread Size | 1-1/4 NPT |
| Outlet Port Thread Size | 3/4-16 UNF-2B |
| Material | Cast Iron |
| Max Operating Speed | 3200 rpm |
| Max Relief Pressure | 140 bar |
| Nominal Flow Rate | 22.5 L/min |
| Pump Displacement | 29.7 cm³/rev |
| Shaft Rotation Direction | Right-Hand |
| Shaft Type | 11-Tooth Spline |
| Package Length | 6.00 in. |
| Package Width | 8.00 in. |
| Package Height | 6.50 in. |
| Net Weight | 21.8 lb. |
| Cross References | V20F1P9P38C6G20 |
