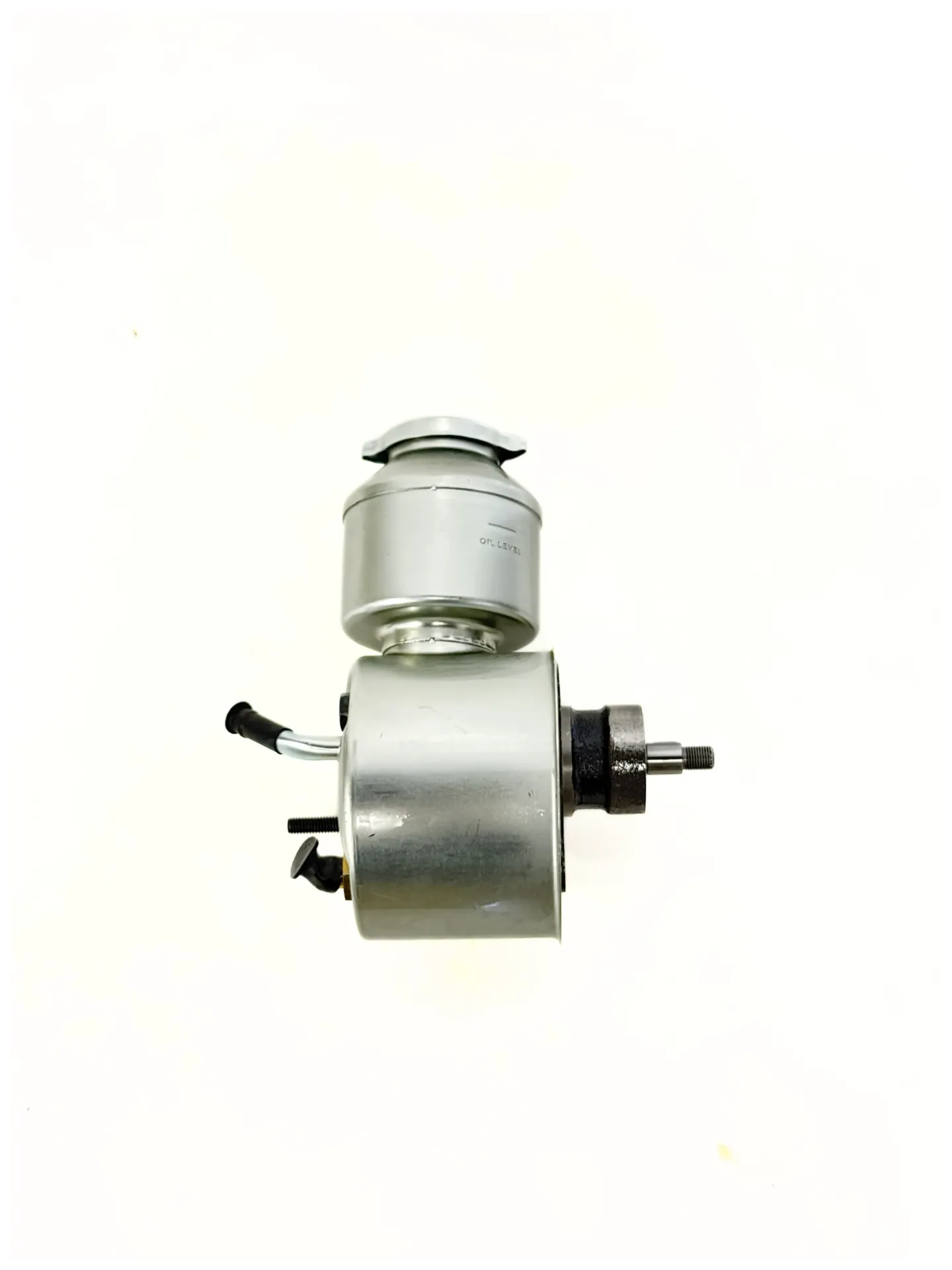

| Product Line | Steering Components |
| Category Name | Power Steering Pump |
| Part Type | Steering Pump |
| Alternate Part Name | Hydraulic Power Steering Pump |
| Model | C60 |
| OEM Part Number | 7840124 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Pattern Offset | 3/4 in. |
| Inlet Port Thread Size | 14.00 mm |
| Outlet Port Thread Size | 3/8-16 UNF-2A |
| Pulley Shaft Diameter | 5/8 in. |
| Pump Base Configuration | 5-1/4 in. |
| Material | Iron / Aluminum |
| Max Operating Speed | 3200 rpm |
| Max Relief Pressure | 110 bar |
| Nominal Flow Rate | 16.6 L/min |
| Pump Displacement | 18.0 cm³/rev |
| Shaft Rotation Direction | Right-Hand |
| Package Length | 7.40 in. |
| Package Width | 11.38 in. |
| Package Height | 11.10 in. |
| Net Weight | 13.8 lb. |
| Cross References | 1488787C91, 465.SAG.01, 488787C91, 7840124, S-5897, S5897 |
| Intended Application | Compa tible with Sagniaw 143 Series C60 GMC International Trucks |
