| Product Line | Suspension |
| Category Name | Air Springs and Bags |

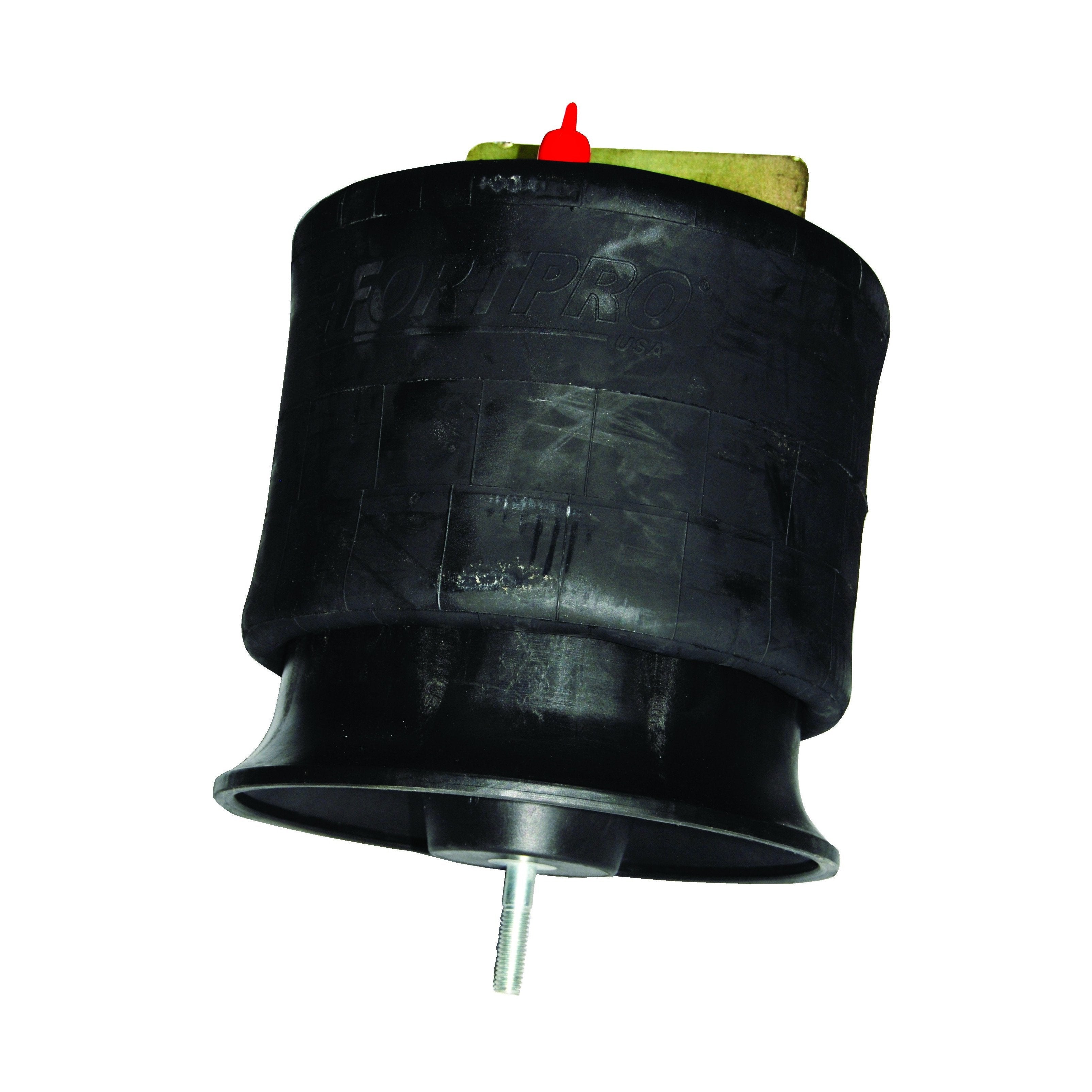

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Air Suspension Bag, Air Bag Suspension, Suspension Air Bag, Pneumatic Spring |
| OEM Part Number | S-25319 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.24 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 4 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 6.00 in. |
| Piston Material Type | Steel |
| Top Plate Diameter | 11.31 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 7.50 in. |
| Extended Length | 24.10 in. |
| Net Weight | 31.15 lb. |
| Cross References | 1R14-152, 1R14152, 75269, 755150, S-25319, S25319 |
| Intended Application | - Compatible with Utility, Great Dane, Wabash, Vanguard, Hyundai Translead, and Stoughton Trailers equipped with Hendrickson INTRAAX (AANT/AANL/AAT/AAL Series) Trailer Air Suspension Systems.
|
