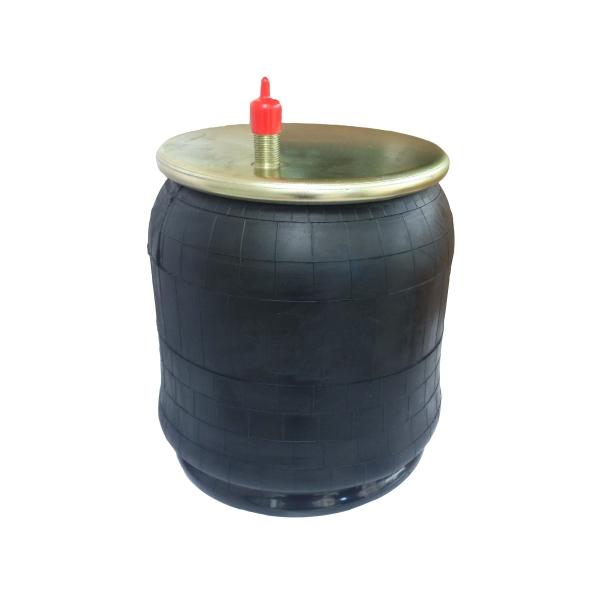

F9270 AIR SPRING
F9270 AIR SPRING
Manufacturer:
FORTPRO
Add to compare list
SKU:
F245586
Share:
Share on Twitter
Share on Facebook
Share on Pinterest
Email a friend
Price:
Qty:
i
h
h
Add to cart
Add to wishlist
Specifications
Contact Us
Products specifications
Basic Part Information
Product Line
Suspension
Category Name
Air Springs and Bags
Part Type
Rolling Lobe Air Spring
Alternate Part Name
Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Air Suspension Bag, Reversible Sleeve Air Spring, Suspension Air Bag, Air Bag Suspension
OEM Part Number
W01-358-9270
Application/Fitment Attributes
Application Type
Semi-Trucks, Heavy Duty Trucks
VMRS Code
016-008-000
Dimensional/Physical Attributes
Material
Fiber reinforced rubber bellows
Air Inlet Inside Thread
1/4-18 NPT
Air Inlet Outside Thread
3/4 16 UNF
Bottom Plate Alignment
Parallel
Bottom Plate Diameter
9.50 in.
Bottom Plate Stud
1/2-13 UNC
Mounting Stud Configuration - Bottom
4
Mounting Stud Configuration - Top
1
Piston Height
3.90 in.
Piston Material Type
Aluminum
Top Plate Diameter
9.00 in.
Technical/Performance Attributes
Air Spring Type
1T Reversible Sleeve
Collapsed Length
5.60 in.
Extended Length
16.90 in.
Packaging & Logistics Attributes
Net Weight
22.25 lb.
Special Attributes
Cross References
1003589270C, 1R12225, 1R13077, 1R13102, 1R13119, 3529270, 566CT64287, 64287, 910135S433, 9270, AB1DK23I9270, AB1DK25BS1015, AS0084, AS9270, C20010, M3542, S20010, S25559, W013589270, FS9270, MAF9270, W01-358-9270
Intended Application
Compatible with heavy-duty trucks and trailers equipped with Hendrickson Turner Air Suspension System.
Your name
*
Your email
*
Enquiry
*
Submit
Product tags
1R12225
(1)
,
1R13077
(1)
,
1R13102
(1)
,
1R13119
(1)
,
3529270
(1)
,
566CT64287
(1)
,
910135S433
(1)
,
9270
(1)
,
AB1DK23I9270
(1)
,
AB1DK25BS1015
(1)
,
FS9270
(1)
,
MAF9270
(1)
,
S20010
(1)
,
S25559
(1)
,
W01-358-9270
(1)
,
W013589270
(1)
,
1003589270C
(1)
,
64287
(1)
,
AS0084
(1)
,
AS9270
(1)
,
C20010
(1)
,
M3542
(1)
Customers who bought this item also bought
Add to compare list
replace F317280 / SPRING EYE BUSH MR782 1616412001 / 3538115C1, MR779 E-8804
F317262
Add to compare list
F9781 AIR SPRING 1R12-603 A16-19468-000, 8529
F245585
Add to compare list
Detroit ISOLATOR ASSEMBLY 23530961
F051891
Add to compare list
Detroit OIL PAN GROMMET KIT DE23522281
F051890
Related Products
Add to compare list
AIR SPRING 9622, 1R11-221
F245569
Add to compare list
AIR SPRING 1R12-487, 9366
F245570
Add to compare list
F9082 AIR SPRING
F245583
Add to compare list
AIR SPRING 9648, 1R12-538
F245595
Add to compare list
AIR SPRING 9039, 1R12-095
F245599
Add to compare list
F9422 AIR SPRING, 1R11-028
F245588
Add to compare list
F8204 AIR SPRING 1R12-508
F245590
Add to compare list
AIR SPRING 8829, 1R12-615
F245597
Add to compare list
F8713 AIR SPRING
F245591
Add to compare list
W01-358-8709 AIR SPRING 1R13-159, S-21800
F245568
Add to compare list
AIR SPRING 1S4-173, 227QS42M
F245577
Add to compare list
F7206 AIR SPRING CAB SUSPENSION
F245573
