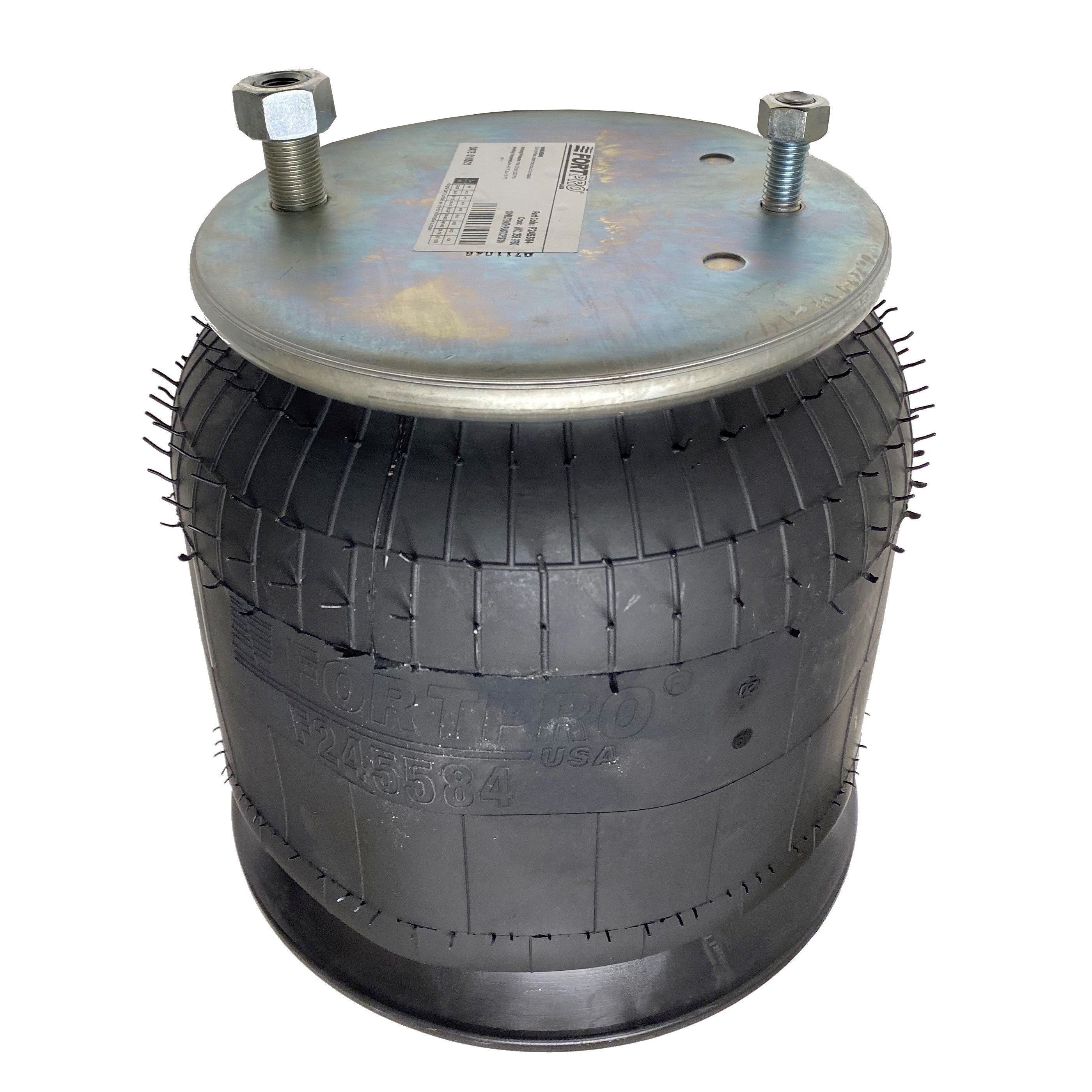

F9780 AIR SPRING A16-18335-001

Manufacturer: FORTPRO
SKU: F245584
Price:
i h h
Products specifications
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameAir Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag
OEM Part NumberW01-358-9780
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
VMRS Code016-008-000
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPTF
Air Inlet Outside Thread3/4 16 UNF
Body Diameter10.62 in.
Bottom Plate AlignmentParallel
Bottom Plate Diameter10.53 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom1
Mounting Stud Configuration - Top2
Piston Height6.89 in.
Piston Material TypeComposite
Top Plate Diameter9.00 in.
Top Plate Stud1/2-13 UNC
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length8.60 in.
Extended Length23.00 in.
Packaging & Logistics Attributes
Net Weight13.60 lb.
Special Attributes
Cross References1613810000, 1613810001, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 1R12186, 1R12189, 1R12303, 1R12603, 3529781, 566CT67473, 6813200017, 6813280001, 9780, A1613668002, A1614004000, A1614004001, A1614377, A1618335000, A1618335001, AB1DF239780, AS9780, EAS9780, FS9780, M3550, MAF9780, W013589780, W013778528, 136922, 1DK23K9780, 1R12-303, 1T15ZR-6, 1T15ZR6, 32303 KPP, 331061, 342303-CPL, 342303CPL, 449781-CPL, 449781CPL, 9 10S-16, 9 10S16, 910S16A382, 910S16P382, 935621, P 382, W01 358 9780
Intended Application
  • Compatible with Freightliner FASII AirLiner (1990+) Tractor Axle Rear Suspension.
*
*
*
